High-precision slicer capable of cutting large materials with multi-blades.

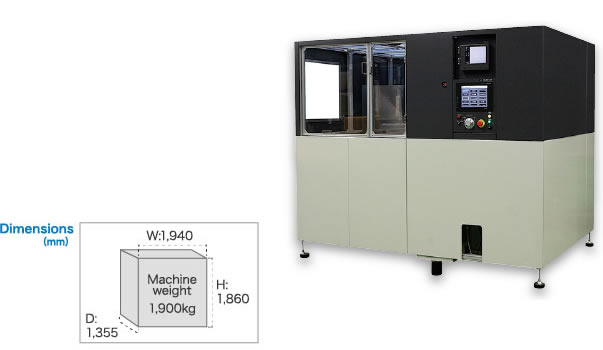

Capacity to fit a maximum blade diameter of φ7" (177.8 mm)

Features

Suitable Materials

■ Maximum workpiece size: 250 mm x 250 mm (MAX: 400 x 400)

Shape

Suitable
products

・Raw ceramics
・Ceramic capacitors
・Optical glass
・Ceramic sensors

Type

Structural Advantages

Standard Specifications

Slicing Machines

DLS7125

Chuck table		(mm)	200 x 200
X axis	Maximum cut stroke Feed speed range Minimum setting unit Drive system & drive source Axis control system	(mm) (mm/sec) (mm)	820 1 to 200 0.001 The motor shaft of the AC servo motor is directly connected to the ball screw. Semi-closed loop control by the axis controller
Y axis	Maximum cut stroke Minimum setting unit Index speed Drive system & drive source Axis control system	(mm) (mm) (mm/sec)	400 0.001 Up to 25 The motor shaft of the AC servo motor is directly connected to the ball screw. Full-closed loop control using a linear encoder
Z axis	Maximum cut stroke Minimum index step Max speed Drive system & drive source Axis control system	(mm) (mm) (mm/sec)	90 0.001 1～20 AC servo motor drives a ball screw Semi-closed loop control by the axis controller
Ｗ axis (θ axis)	Rotation range Minimum resolution	deg (°)	105 0.494（360°/2621440P）
Spindle	Type Speed range Speed control Drive motor (* indicates standard specification) Blade size	(min-1) (kw) (φ)	Belt drive, mechanical bearing 600 – 8000 Spindle inverter 3.7kW magnet motor (OD) 125 x (ID) 40
Auto alignment	Type Pattern matching Lighting Automatic measurement of line width Manual measurement of kerf width Distribution of brightness Microscope specifications Camera TV monitor Overall magnification on the screen Replacing the product to be cut Accuracy Line size that can be aligned Alignment method	Based on fiducial pattern by CCD camera Magnification 0.27x (pixel size 0.00341 mm) Oblique lighting Automatically measures kerf width and checks whether it is within the allowable range Measures kerf width manually Distribution display of pattern brightness A single-object microscope (without ocular lens) with adjustable focus (2x magnification) 2/3" CCD camera 9" monochrome CRT Monitor magnification Approx. 20x Approx. 80x Automatic switching of each alignment condition simultaneously with device data switching ±0.001mm 0.1 mm or more Standard alignment (2-point alignment on one side) 4-point alignment on one side
Accuracy	X axis straightness: In the horizontal plane X axis straightness: In the vertical plane Table top accuracy Y axis index accuracy: Repeatability Y axis index accuracy: Indexing Z axis index accuracy: Repeatability Z axis index accuracy: Indexing W axis index accuracy: Repeatability W axis index accuracy: Absolute accuracy Spindle run out	(mm) (mm) (mm) (μm) (μm/mm) (μm) (μm/mm) (") (") (mm)	0.01/40 0.01/540 ±0.02/200 x 200 ±2 ±5/250 ±2 ±5/50 ±1.3 ±8 Radial direction 0.002
Machine size		(mm)	1940 (W) x 1355 (D) x 1860 (H)
Machine weight	Coolant water pressure Coolant consumption Power consumption	(MPa) (l/min) (kVA)	0.3 20 2.0 kVA (coolant unit)
Machine size		(mm)	1,120 (W) x 1,450 (D) x 1,530 (H)
Machine weight		(kg)	1,900
Utility Power	Power supply Power consumption Noise Grounding	(Hz) (kVA)	3-phase AC 200 V within ±10% 50/60 10 Less than 2000 V at pulse width 500 ns (square wave) JIS third class grounding resistance 100 Ω or less
Utility Air source	Supply pressure Consumption	(L/min(ANR))	0.55 MPa/G or higher Up to 450

*The specification of this machine may be changed for improvement without notice.
*Please contact our sales department for cutting application inquiries on this machine.
