Cuts 30 mmt thick material in high precision!
Obtain higher throughput than ever before.

Features

Suitable Materials

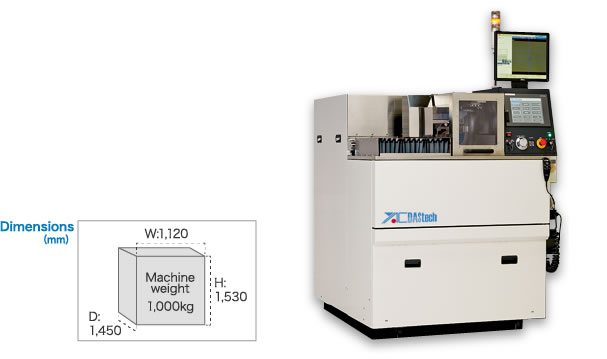

■ Maximum workpiece size: 200 mm x 200 mm

Shape

Suitable
products

・Thick, multi-layer ceramic substrates with printed patterns
・Ceramics package
・PZT plates
・Optical glass

Type

*Suitable for cutting thick workpieces.
(Up to 30 mmt)

Structural Advantages

Standard Specifications

Slicing/Dicing Machines

DAS110

Chuck table		(mm)	200 x 200
X axis	Cut stroke Cutting speed range Max speed Drive source	(mm) (mm/sec) (mm/sec)	200 0.1 - 150 150 AAC servo motor
Y axis	Effective stroke Index setting range Index speed Linear scale Drive source	(mm) (mm) (mm/sec)	200 0.001 - 200 MAX 50 0.5 μm feedback AC servo motor
Z axis	Effective stroke Cutting height setting Minimum index step Max speed Drive source	(mm) (mm) (mm) (mm/sec)	75 0.001 - 75 (in accordance with chuck table height) 0.001 MAX 20 AC servo motor
Ｗ axis (θ axis)	Chuck table size Rotation range Minimum resolution Drive source	(mm) (°) (°)	200 x 200 90 (Right rotation) 360/2,621,440 DD motor (15 Nm)
Spindle	Style Speed range Speed control Motor Blade size Safety interlock	(rpm) (kw)	Belt drive, ball bearing spindle 1,000 - 8,000 Spindle inverter 3.7 Magnet motor OD φ100 - φ152 x ID φ40 1. Splash cover is locked during spindle rotation. 2. Spindle does not rotate while the cover is open.
Operation panel	Touch panel		Showing the operation switch, cutting data, parameter setting, error massages, etc.
Accuracy	Table top accuracy X axis straightness Y axis index accuracy Z axis index accuracy Spindle run out θ axis index accuracy	(mm) (mm) (mm) (mm) (mm) (mm) (mm) (") (")	0.02/200 x 200 In the horizontal plane Accumulative error Repeatability Accumulative error Repeatability Radial direction runout Accumulative error Repeatability	0.01/200 ±0.01/200 ±0.005 ±0.01/75 ±0.005 0.003 5"/90° 1.3"
Utility	Power Power consumption Air source pressure Air consumption	(kVA) (MPa) (Nl/min)	3 phase 200 V 50/60 Hz 8kVA 0.55 200 (For driving source)
Water supply unit	Coolant water pressure Coolant consumption (MAX) Power consumption	(MPa) (l/min) (kVA)	0.3 20 2.0 kVA (coolant unit)
Machine size		(mm)	1,120 (W) x 1,450 (D) x 1,530 (H)
Machine weight		(kg)	1,000

*The specification of this machine may be changed for improvement without notice.
*Please contact our sales department for cutting application inquiries on this machine.
